不干膠分切機

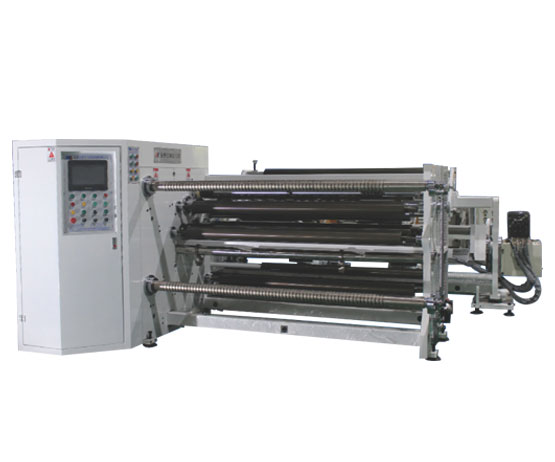

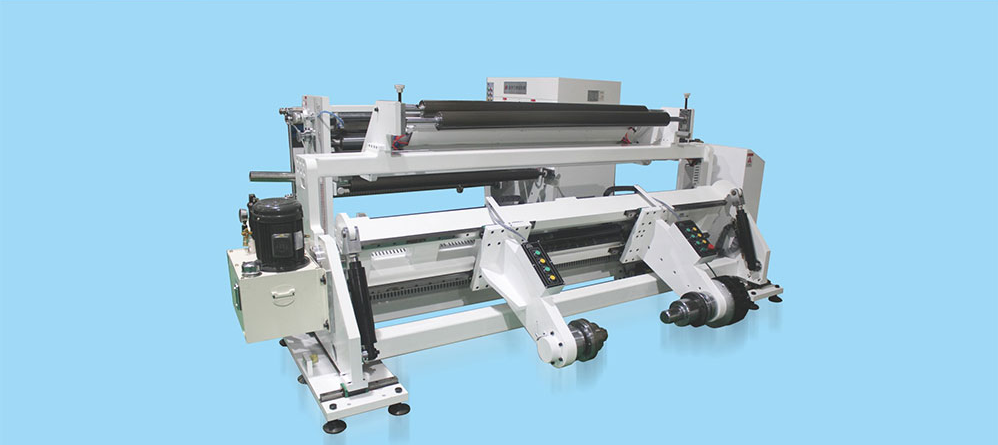

不干膠分切機（無軸上料）RG-1650

本機適用于:光學膜，合成紙等分條復卷。

Strip rewinding of adhesive, optical film and synthetic paper

●放卷采用無軸放卷,操作介面采用LCD觸控屏，可直接在屏幕上設定各種卷取條件及運轉狀況。

兩個卷取馬達配合主機馬達做三馬達連動控制，主機馬達隔斷放料及收卷馬達控制張力，張力穩(wěn)定,收卷軸采用靈活設計，易拆卸，方便更換不

同材料的收卷及維護。

,控制部分采用編程式控制器進行機械動作控制，備有自我檢測系統(tǒng)，機器故障時可自行診斷故障原因。

, The operation interface adopts LCD touch screen, which can directly set various coiling conditions and operation conditions on the

screen.

The two take - up motors cooperate with the main motor to perform three- motor continuous control. The main motor

separates the take- up and take up motors and controls the tension. The tension is stable. The take up reel is designed

flexibly and is easy to disassemble. It is convenient to take up and maintain different materials.

The control part adopts programmable controller to control the mechanical action, and has self- detecting system. When the

machine fails, the cause of the failure can be diagnosed by itself.

序號 S/N	名稱 Name	規(guī)格內容 Specification	備注 Remarks
1	技術要求 Technical requirements	分切厚度:0.038-0.25mm Slitting thickness:0.038-0.25mm
2		分切寬度:30-1350mm litting width:30-1350mm
3		分切精度: ±0.1mm Slitting accuracy: ±0.1mm
4		放卷直徑:≤800mm Unwinding diameter:≤800mm
5		放卷管芯:Φ76.2-Φ77 (紙管) Reel core:Φ76.2-Φ77
6		收卷直徑:≤550mm-上下雙軸 Winding diameter:≤550mm
7		收卷管芯:Φ76.2-Φ77 (紙管) Coilcore:Φ76.2-Φ77
8		分切速度:0-250m/min (機械速度) litting speed:0-250m/min
9		電源供應:380v 50HZ Power supply:380v 50HZ
10		氣源/空壓器:≤5P(客戶自備) Air source/air compressor:≤5P
11	主機結構 Host structure	45mm厚墻板 45mm thick wallboard
12		整機過渡鋁導輥硬質氧化，拋光處理(防刮傷) Hard oxidation and polishing of transition aluminum guide rollers of the whole machine(scratch prevention)
13		主機連接件時效，加強處理 Time-effect and strengthen treatment of main machine connection parts
14	亮點功能/和機械配件選型 Highlight function/ and mechanical parts selection	自動量下刀裝置 Automatic tool cutting device	√
15		下刀軸采用氣脹固定式 The lower tool shaft is fixed by air expansion	√
16		選用西門子中央工控 Siemens central industrial control	√
17		整機使用日本進口NSK軸承 The whole machine uses NSK bearings imported from Japan.	√
18		輔助軸采用可旋轉式 Rotatable auxiliary shaft
19		卸料軸(滾珠式) Discharging shaft (ball type)
