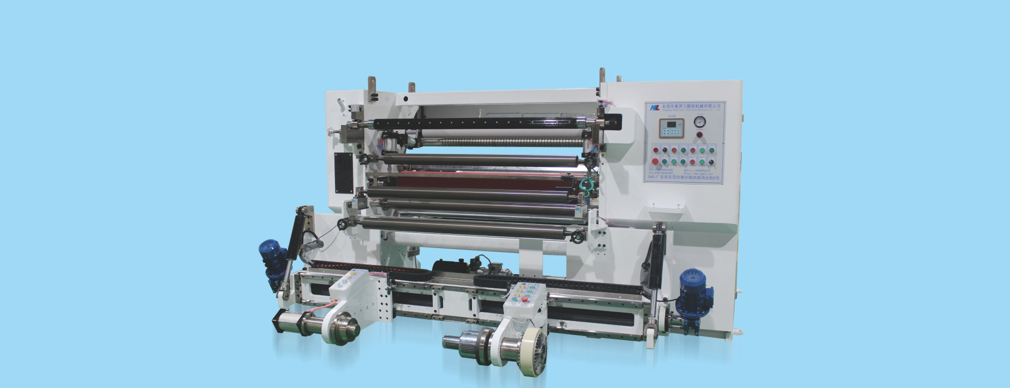

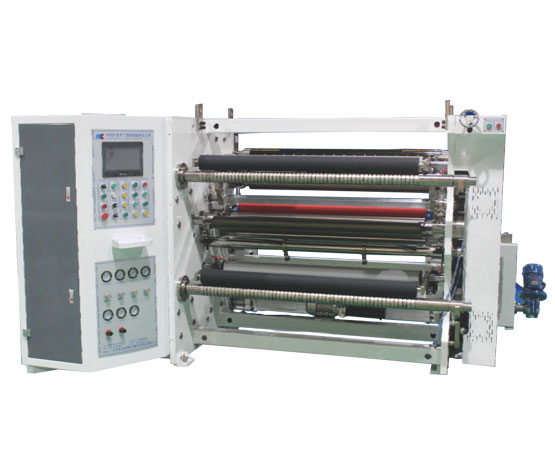

防護條分切機    MGX-1350

本機適用于:離型膜，PET, OPP,CPP,PVC，紙等卷材

Optical film, release film,PET, OPP, CPP, PVC, paper andso on

●放卷采用無軸放卷:放卷機構采用液壓無軸中心式放卷,放卷臂可上下左右調節，最大承重為2000kg，配3“6”寸錐度塞頭一套，即使在滿負

荷情況下操作工只需簡單操作按鍵即可輕易完成上卷動作，大幅減輕勞動強度,減少上卷時間，提高生產效率。

●糾偏使用交流超聲波系統,超聲波檢測材料邊緣，自動識別材料無需任何調整，交流電機驅動，反應靈敏，跟蹤精確。

●整機操控人性化，10寸觸摸屏人機操作界面、三菱PLC集中控制，開關按鍵、調節手柄、標志、顏色等的設計符合人體工程學和國家安全質量檢

測標準要求，數字顯示、變頻調速、智能定長停機、緊急停車、過載保護等功能一應俱全。

●本機采用三馬達連動控制，收料軸采用滑差軸，易更換，及維護。

●Uncoiling adopts shaftless uncoiling: the uncoiling mechanism adopts hydraulic shaftless center type uncoiling, the uncoiling arm can be

adjusted up and down and left and right, the maximum load is 2000kg, and a set of3 "6" inch taper plugs is provided. Even under full load, the

operator can easily complete the coiling operation by simply operating keys, greatly reducing labor intensity, reducing coiling time and

improving production efficiency.

●AC ultrasonic system is used to rectify the deviation. Ultrasonic wave detects the edge of the material and automatically identifies the material

without any adjustment. AC motor is used to drive the material. It is sensitive and accurate in response and tracking.

●Humanized control of the whole machine, 10-inch touch screen man-machine interface, Mitsubishi PLC centralized control, switch keys,

adjustment handle, logo, color design in line with the requirements of ergonomics and national safety and quality inspection standards, digital

display, frequency conversion speed regulation, intelligent fixed-length stop, emergency stop, overload protection and other functions.

The machine is controlled by three motors, and the material receiving shaft is slippery shaft, which is easy to be replaced and maintain.
