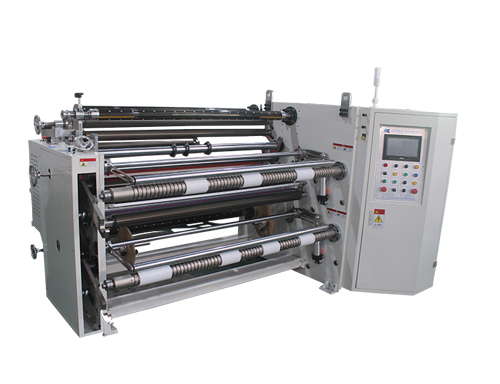

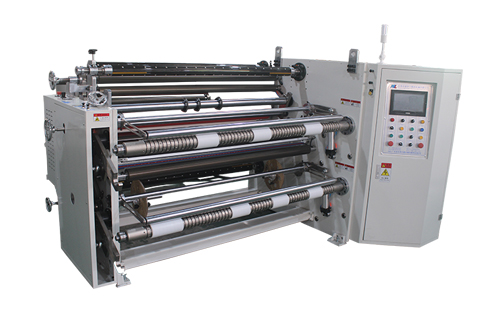

RFZ-1600貼合剝離分條機

RFZ-1600三層貼合剝離分條機

本機適用于:光學膜、保護膜、離型膜、泡棉、紙類、銅箔、鋁箔、等貼合分條復卷

Optical film, protective film, release film, foam, paper, copper foil,

aluminum foil, and other laminated strip rewinding

結構簡單，操作簡單實用，適合模切、印刷、涂布等行業配套

simple structure, simple and practical operation, suitable for die cutting, printing, coating and other industries.

RFZ-1600三層貼合剝離分條機

序號 S/N	名稱 Name	規格內容 Specification
1	機器型號 Machine Model	RF-1300YT
2	分切速度 Cutting speed	100 min
3	紙寬約 Maximum Paper Width	1300 mm
4	分切寬度約 Minimum Slitting Widt	30 mm
5	貼合材料寬度(選配) Maximum bonding material width (optional)	1250mm
6	原料放卷直徑約 Maximum unwinding diameter of raw material	中800 mm
7	貼合放卷直徑約 Sticking and unwinding maximum diameter	中400 mm
8	收卷直徑約 Maximum take-up diameter	中450 mm
9	收、放卷紙筒直徑 Diameter of take-up and take-off reels	3寸
10	分切精度 Cutting accuracy	士0.15 mm
11	機器重量 Machine weight	2200 kg
12	電機電壓功率 Motor voltage power	380v 9kw
13	機器尺寸(長寬高) Machine Dimensions (Length, Width and Height)	2300mm* 2200mm* 1300mm
