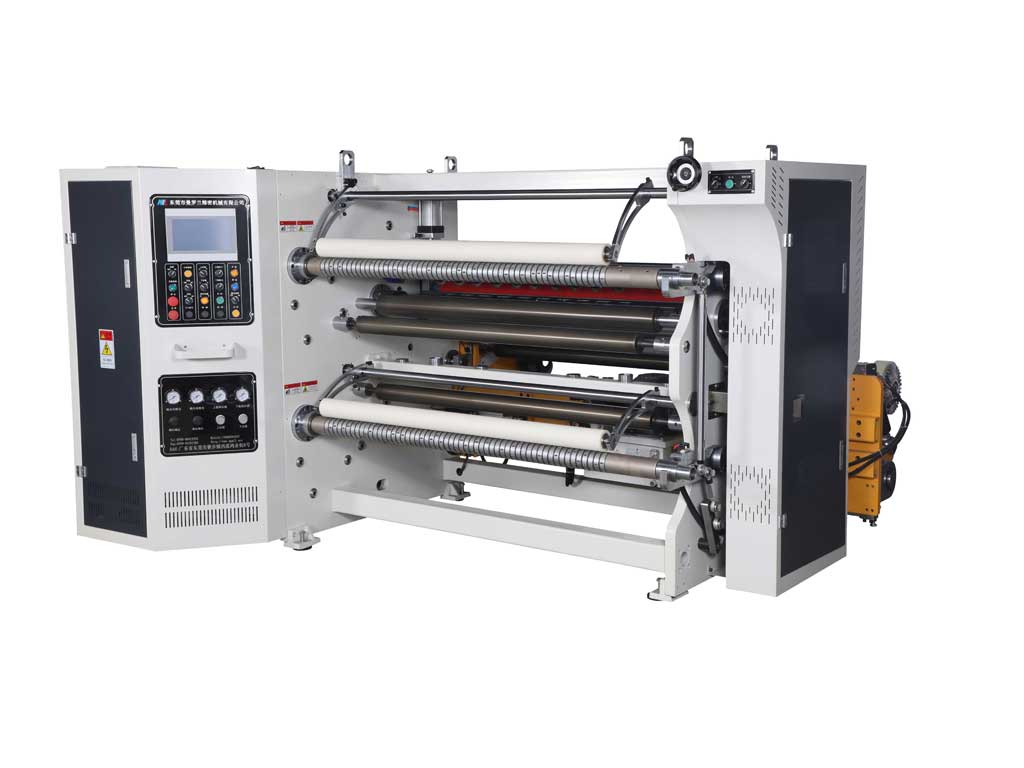

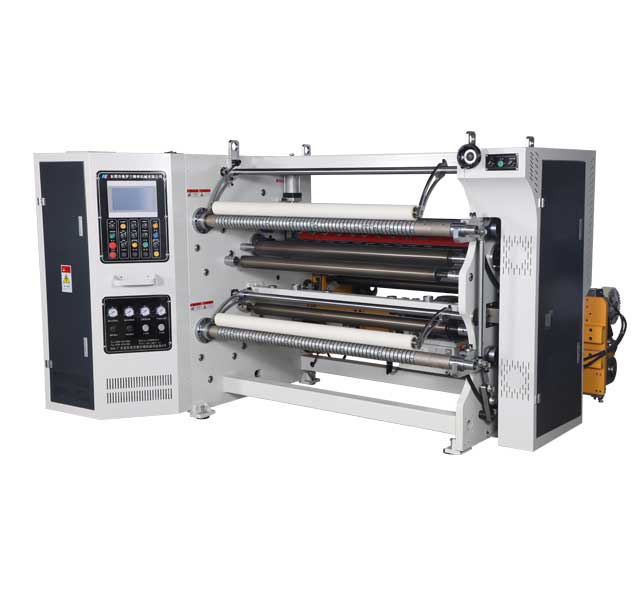

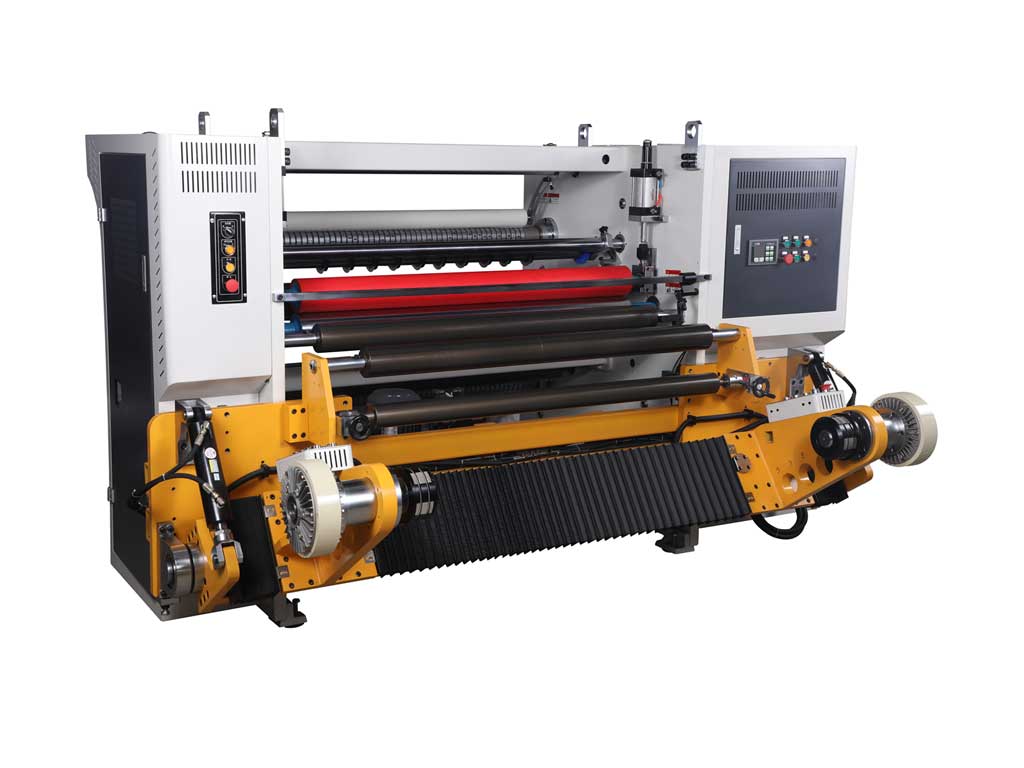

MGX-1350分條機參數
MGX-1350 Splitter Parameters
產品特點
本機適用于光學膜，離型膜，PET，OPP,CPP,PVC,紙等卷材，
1.放卷采用無軸放卷：放卷機構采用液壓無軸中心式放卷，放卷臂可上下左右調節，大承重為2000kg，配3“6”寸錐度塞頭一套，即使在滿負荷情況下操作工只需簡單操作按鍵即可輕易完成上卷動作，大幅減輕勞動強度，減少上卷時間，提高生產效率。
2. 糾偏使用交流超聲波系統，超聲波檢測材料邊緣，自動識別材料無需任何調整，交流電機驅動，反應靈敏。
3.整機操控人性化，10寸觸摸屏人機操作界面、三菱PLC集中控制，開關按鍵、調節手柄、標志、顏色等的設計符合人體工程學和國家質量檢測標準要求，數字顯示、變頻調速、智能定長停機、緊急停車、過載保護等功能一應俱全。
4.本機采用三馬達連動控制，收料軸采用滑差軸，易更換，及維修。
Product Features
This machine is suitable for optical film, release film, PET, OPP, CPP, PVC, paper and so on.
1. Uncoiling adopts shaftless uncoiling: the uncoiling mechanism adopts hydraulic shaftless center type uncoiling, the uncoiling arm can be adjusted up and down and left and right, the maximum load is 2000kg, and a set of 3 "6" inch taper plugs is provided. Even under full load, the operator can easily complete the coiling operation by simply operating keys, greatly reducing labor intensity, reducing coiling time and improving production efficiency.
2. AC ultrasonic system is used to rectify the deviation. Ultrasonic wave detects the edge of the material and automatically identifies the material without any adjustment. AC motor is used to drive the material. It is sensitive and accurate in response and tracking.
3. Humanized control of the whole machine, 10-inch touch screen man-machine interface, Mitsubishi PLC centralized control, switch keys, adjustment handle, logo, color design in line with the requirements of ergonomics and national safety and quality inspection standards, digital display, frequency conversion speed regulation, intelligent fixed-length stop, emergency stop, overload protection and other functions.
4. The machine is controlled by three motors, and the material receiving shaft is slippery shaft, which is easy to be replaced and maintained.
名稱 Name | 規格內容 Specification | |
1 | ☆分切厚度 Slicing thickness | 保護膜0.025—0.5mm Protective film 0.025-0.5MM |
2 | ☆原料寬度 Raw material width | 1300mm（輪面寬度1400mm） 1300 mm (wheel face width 1400 mm) |
3 | ☆最大放卷直徑 Maximum unwinding diameter | Φ900 mm（放卷有效寬度1350mm*紙管寬度） Φ900Mm (effective width of unwinding 1350mm*width of paper tube) |
4 | ☆最大收卷直徑 Maximum take-up diameter | Φ600 mm-上下雙軸 Φ600 Mm-Up and Down Double Axis |
5 | ☆最小分條寬度 Minimum Split Width | 30 mm - 1300 mm |
6 | ☆分切端面整齊度 Uniformity of cut end face | ±0.1 mm（采用直刀式分條精度可達到±0.15） ± 0. 1 mm (accuracy of ± 0. 15 with straight knife)
|
7 | ☆收卷管芯內徑 Inside diameter of take-up die | 3" (76.2mm) 滑差軸 3 "(76.2 mm) slip shaft |
8 | ☆機械運行速度 Mechanical running speed | 0- 220 M/min（設計速度，因材料特性而已） 0-220 M/min (design speed, only due to material characteristics) |
9 | ☆電源供應 Power Supply | 380V 50HZ
|
10 | ☆機器總功率 Total machine power | 25 KW |
11 | ☆機械尺寸約 Mechanical dimensions approx. | 長 3800mm*寬2700 mm* 高1700mm Length 3800mm*Width 2700mm*Height 1700mm |
12 | ☆分切方式 Splitting mode | 圓刀分切，直刀共用型 Circular knife cutting, straight knife sharing type |
13 | ☆放料機座 Discharge frame | 無軸式上料 Shaftless feeding |
14 | ☆放卷張力檢測 Unwinding tension detection | 恒張力實時檢測自動調整 Automatic Adjustment of Constant Tension Real-time Detection |
15 | ☆邊料 Edge material | 直接用風機吹 1.1KW+邊料機收卷 Blow 1.1 KW + Sidewinder directly with a fan to reel |
16 | ☆卸料 Discharge | 收料軸卸料架式卸料 Take-up shaft discharge rack discharge |
17 | ☆收卷靠壓輥 Reeling roller | 包輪式壓輥，用于排氣泡。 Wheel-type pressing roller for removing air bubbles. |
18 | ☆保護膜放卷軸 Protective film release reel | 3"(76.2mm)氣脹軸，采用擺出器卸料及上料，不用卸軸，減輕勞動強度，磁粉放料，手動調節對邊，放料膜直徑350. 3 "(76.2mm) inflatable shaft, using pendulum to unload and load materials, without unloading shaft, reducing labor intensity, magnetic powder discharging, manually adjusting the opposite side, discharging film diameter 350 |
