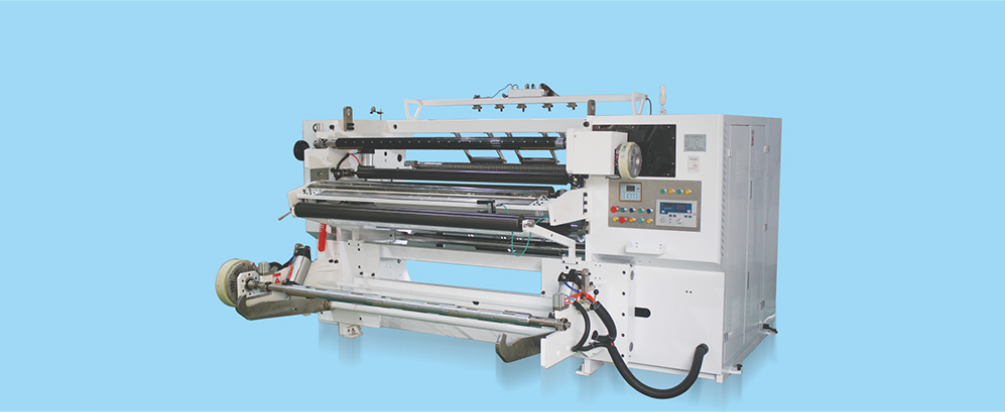

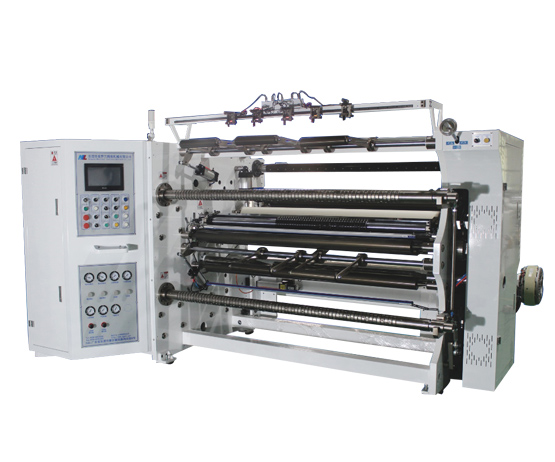

光學膜分切機 MGX-1650
本機適用于:光學膜/OCA /離型膜/PET /OPP /CPP I PVC /紙等卷材
Optical film, OCA, release film, PET, OPP, CPP, PVC, paper and so on
放卷采用有軸式放卷:放卷采用上料臂式上料，減少上卷時間，提高生產效率。
放料采用接料平臺式接料，接料平整便捷，收料軸采用滑差軸，易更換，及維護。
本機采用三馬達連動控制，10 寸觸摸屏人機操作界面、三菱PLC集中控制，開關按鍵、調節手柄、標志、顏色等的設計符合人體工程學和國家安全質量檢測標準要求，數字顯示、變頻調速、智能定長停機緊急停車、過載保護等功能一應俱全。
Unwinding with axle: Unwinding with feeding arm to reduce winding time and improve production efficiency.
●That material discharge adopt the material receiving platform type material receive, the material receiving is flat and
convenient, the material receiving shaft adopts a slip shaft, and the material receiving shaft is easy to be chan and maintained.
The machine adopts three- motor continuous control, 10-inch touch screen man- machine interface, Mitsubishi PLC centralized
control, switch keys, adjusting handle, logo, color design in line with ergonomics and national safety and quality inspection
standards, digital display, frequency conversion speed regulation, intelligent fixed-length stop, emergency stop, overload
protection and other functions.
序號 S/N | 名稱 Name | 規格內容 Specification |
1 | 分切厚度 Slicing thickness | 保護膜0.025- -0.5mm Protective film 0.025-0.5MM |
2 | 原料寬度 Raw material width | 1300mm (輪面寬度1400mm) 1300mm (wheel face width 1400mm) |
3 | 最大放卷直徑 Maximum unwinding diameter | Φ900 mm (放卷有效寬度1350mm*紙管寬度) Φ900 mm(effective width of unwinding 1350mm*width of paper tube) |
4 | 最大收卷直徑 Maximum take-up diameter | Φ600 mm-上下雙軸 Φ600Mm-Up and Down Double Axis |
5 | 最小分條寬度 Minimum Split widt | 30 mm - 1300mm |
6 | 分切端面整齊度 Uniformity of cut end face | 士0.1 mm (采用直刀式分條精度可達到土0.15) 士0.1 mm (accuracy of士0. 15 with straight knife) |
7 | 收卷管芯內徑 Inside diameter of take-up die | 3" (76.2mm)滑差軸 3 "(76.2 mm) slip shaft |
8 | 機械運行速度 Mechanical running speed | 0- 220 M/min (設計速度，因材料特性而已) 0-220 M/min (design speed, only due to material characteristics) |
9 | 電源供應 Power Supply | 380V 50HZ |
10 | 機器總功率 Total machine power | 25KW |
11 | 機械尺寸約 Mechanical dimensions approx | 長3800mm*寬2700 mm*高1700mm Length 3800mm*Width 2700 mm*Height 1700mm |
12 | 分切方式 Splitting mode | 圓刀分切，直刀共用型 Circular knife cutting, straight knife sharing type |
13 | 放料機座 Discharge frame | 無軸式上料 Shaftless feeding |
14 | 放卷張力檢測 Unwinding tension detection | 恒張力實時檢測自動調整 Automatic Adjustment of Constant Tension Real-time Detection |
15 | 邊料 Edge treatment | 直接用風機吹1.1KW+邊料機收卷 Blow 1.1 KW + Sidewinder directly with a fan to reel |
16 | 卸料 Discharge | 收料軸卸料架式卸料 Take-up shaft discharge rack discharge |
17 | 收卷靠壓輥 Reeling roller | 包輪式壓輥，用于排氣泡 Wheel-type pressing roller for removing air bubbles |
18 | 保護膜放卷軸 Protective film release reel | 3"(76.2mm)氣脹軸，采用擺出器卸料及上料，不用卸軸，減輕勞動強度,磁粉放料， 手動調節對邊，放料膜直徑350. 3 "(76.2 mm) Inflatable shaft, using pendulum to unload and load materials, without unloading shaft, reducing labor intensity, magnetic powder discharging, manually adjusting the opposite side, discharging film diameter 350 |
