分條機

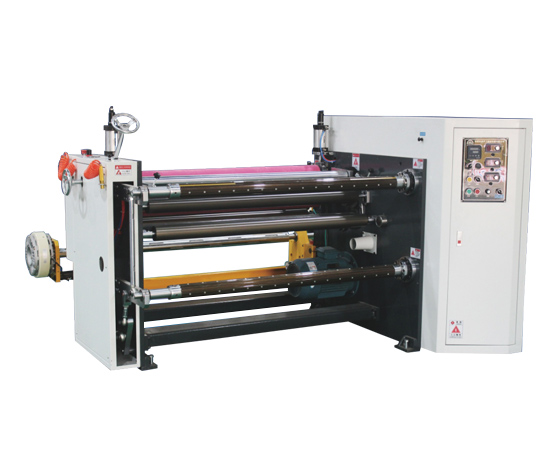

分條機 RF-1300YT

本機適用于: 光學膜、保護膜、離型膜、泡棉、紙類、銅箔、鋁箔、等分條復卷

Optical film, protective film, release film, foam, paper, copper foil,aluminum foil, equal strip rewinding

結構簡單，操作簡羊?qū)嵱?，適臺模切、印刷、濱布鴨行業配套

Simple structure, simple and practical operation, suitable for die-cutting. printing. coating and other industrles.

序號 N/S	名稱 Name	規格內容 Specification
1	機器型號 Machine Model	RF- 1300YT
2	分切速度 Cutting speed	0-100 min
3	最大紙寬 Maximum Paper Width	1300 mm
4	最小分切寬度 Minimum Slitting Width	25 mm/30mm(下刀類型差異) 25 mm/30mm(cut type difference)
5	最大貼合材料寬度(選配) Maximum bonding material width (optional)	1250mm
6	原料最大放卷直徑 Maximum unwinding diameter of raw material	Φ800 mm
7	最大收卷直徑 Maximum take-up diameter	Φ450 mm
8	收、放卷紙筒直徑 Diameter of take-up and take-off reels	3英寸(標準) 3 inch (standard)
9	分切精度 Cutting accuracy	士0.15 mm
10	機器重量 Machine weight	2100 kg
11	電機電壓功率 Motor voltage power	380v 8kw
12	機器尺寸(長寬高) Machine Dimensions (Length, Width and Height)	2200mm* 2300mm* 1300mm
