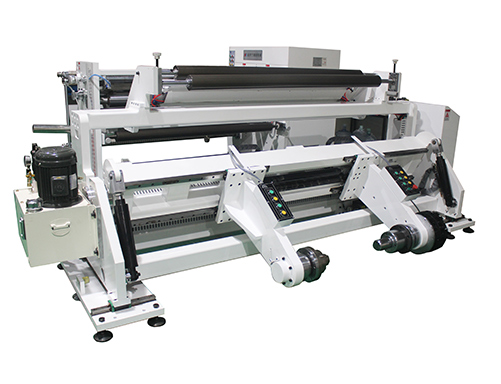

RG-1650不干膠分條機（無軸上料）

所屬分類：貼合分條機
點擊次數：
發布日期：2020/11/10
更多
在線詢價

詳細內容
產品參數
圖片說明


RG-1650不干膠分條機-技術參數

Rg-1650 adhesive Slitter-- Technical Parameters

本機適合用于光學膜，合成紙等分條復卷，放卷采用無軸放卷，操作介面采用 LCD 觸控屏，可直接在屏幕上設定各種卷取條件及運轉狀況。兩個卷取馬達配合主機馬達做三馬達連動控制，主機馬達隔斷放料及收卷馬達控制張力，張力穩定，收卷軸采用靈活設計，易拆卸，方便更換不同材料的收卷及維護。控制部分采用編程式控制器進行機械動作控制，備有自我檢測系統，機器故障時可自行診斷故障原因。

This machine is suitable for strip rewinding of adhesive, optical film and synthetic paper. The operation interface adopts LCD touch screen, which can directly set various coiling conditions and operation conditions on the screen. The two take-up motors cooperate with the main motor to perform three-motor continuous control. The main motor separates the take-up and take-up motors and controls the tension. The tension is stable. The take-up reel is designed flexibly and is easy to disassemble. It is convenient to take-up and maintain different materials. The control part adopts programmable controller to control the mechanical action, and has self-detecting system. When the machine fails, the cause of the failure can be diagnosed by itself.

摘要Summary	規格內容Specification	備注Remarks
技術要求 Technical requirements	1.分切厚度Slitting thickness：0.038-0.25mm
	2.分切寬度Slitting width：30-1350mm
	3.分切精度Slitting accuracy：±0.1mm
	4.放卷直徑Unwinding diameter：≤800mm
	5.放卷管芯Reel core：?76.2-?77（紙管)
	6.收卷直徑Winding diameter：≤550mm-上下雙軸
	7.收卷管芯Coil core：?76.2-?77（紙管)
	8.分切速度Slitting speed：0-250m/min（機械速度）
	9.電源供應Power supply：380v 50HZ
	10.氣源/空壓器Air source/air compressor：≤5P（客戶自備）
主機結構 Host structure	1. 45mm 厚墻板thick wallboard
	2. 整機過渡鋁導輥硬質氧化，拋光處理（防刮傷） Hard oxidation and polishing of transition aluminum guide rollers of the whole machine (scratch prevention)
	3. 主機連接件時效，加強處理 Time-effect and strengthen treatment of main machine connection parts
亮點功能/和機械配件選型 Highlight function / and mechanical parts selection	1. 自動量下刀裝置 Automatic tool cutting device	√
	2. 下刀軸采用氣脹固定式 The lower tool shaft is fixed by air expansion	√
	3. 選用西門子中央工控 Siemens central industrial control	√
	4. 整機使用日本進口NSK軸承 The whole machine uses NSK bearings imported from Japan.	√
	5. 輔助軸采用可旋轉式 Rotatable auxiliary shaft
	6. 卸料軸（滾珠式） Discharging shaft (ball type)
